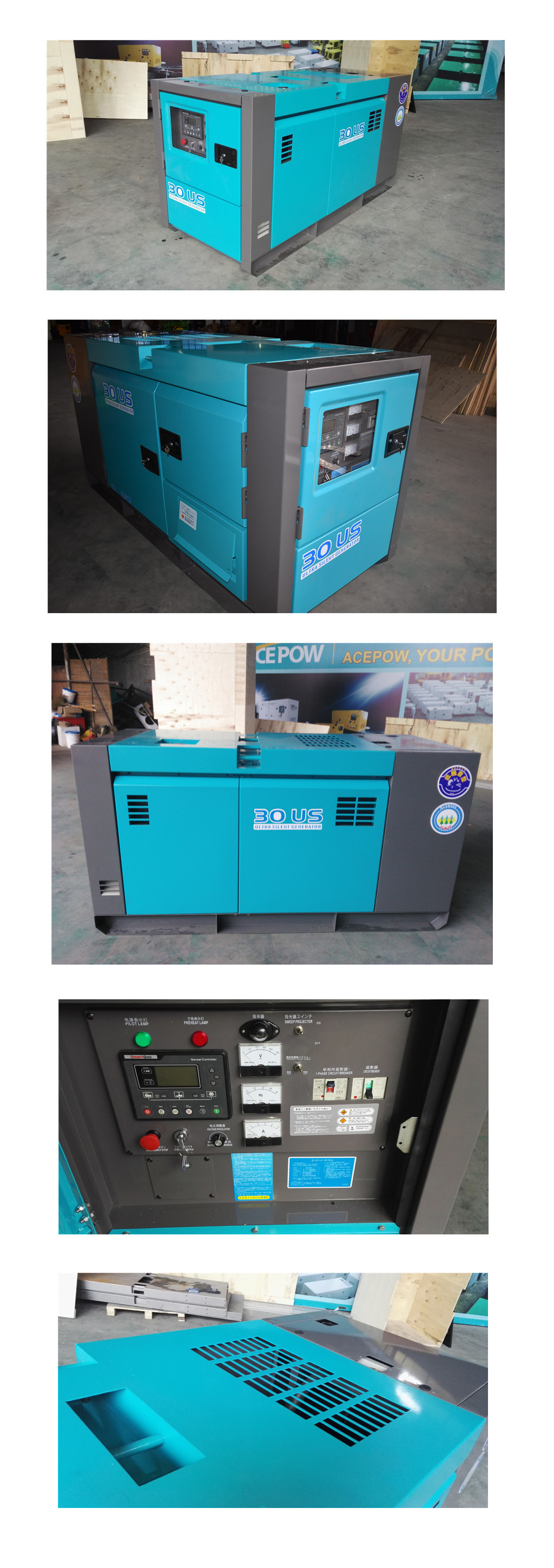

Denyo Design Standby Diesel Generator 50hz 60hz Isuzu Diesel Home Standby Generator Made In China
AUSTRALIA SPECIAL DESIGN ADVANTAGE :
1. IP66 Australia special socket, 3 & 1 phase, 10A, 20A, 32A;
2. Australian industrial water-proof plug 1 & 3 phase
3. Double layer drawout design base fuel tank, anti- fuel leaking
4. Famous brand COMAP AMF20 controller
5. Isuzu type engine , Brushless alternator with 100% copper
6. Forklift foot with Sockets for easy handling
7. Double lifting rings, removable, easy maintenance
8. Equip Superior quality " VARTA " battery
9. Base Fuel tank 360 L.
10. Stainless Steel all Screws, Nuts, Bolts and Door Locks & Hinges, Anti -rust
Alternator: ACEPOW Brushless alternator
Conttrol System: Separaately Excited BY P.M.G.
Insulatiion System : Class H
Protection: IP23
Rated Power Factor: 0.8
Stator Winding: Double Layer Concentric
Winding Pitch: Two Thirds
Winding Leads : 12
Stator Wdg.Resistance: 0.044 Ohms Per Phase At 22°C Series Star Connected
Rotor Wdg.Resistance: 1.26 Ohms at 22°C
Exciter Stator Resiistance: 20 Ohms at 22°C
Exciter Rotorr Resisttance: 0.091 Ohms Per Phase At 22°C
R.F.I. Suppression: BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others
| Genset Model | API-20 |
| Prime Power (kw/kva) | 16/20 | Standby Power(kw/kva) | 18/22 |
| Voltage (v) | 220/380V | Rated Speed (rpm) | 1500 |
| Frequency (Hz) | 50 | Rated Current (A) | 30.39 |
| Connection: | 3 phase 4 wire | Power Factor: | 0.8 |
| Engine Model: | 4JB1 | Alternator Model: | BC184E |
| Net Weight (kgs)-Open | 565 | Net Weight (kgs)-Silent | 950 |
| Dimensions (mm)-Open | 1550*700*1050 | Dimensions (mm)-Silent | 2100*1150*1150 |
| Engine Parameter: |
| Manufacturer/Model: | ISUZU 4JB1, 4 stroke |
| Aspiration: | Nature |
| Fuel System: | Direct type Fuel Pump, |
| Cylinder numbers | 4 cylinders |
| Displacement: | 2.77 L |
| Bore x Stroke | 93 x 102 mm |
| Compression Ratio: | 18.2:1 |
| Max. Power: | 27KW /35.91HP |
| Governing System: | Mechanical |
| Intake System |
| Max. Allowed Pressure: | 6.25 kPa |
| Gas Volume: | 6.9 m³/min |
| Air Flow: | 152 m³/min |
| Fuel System |
| 100% Load (Prime): | 5.6L/H |
| 75% Load(Prime): | 4.2 L/H |
| 50% Load (Prime): | 2.8 L/H |
